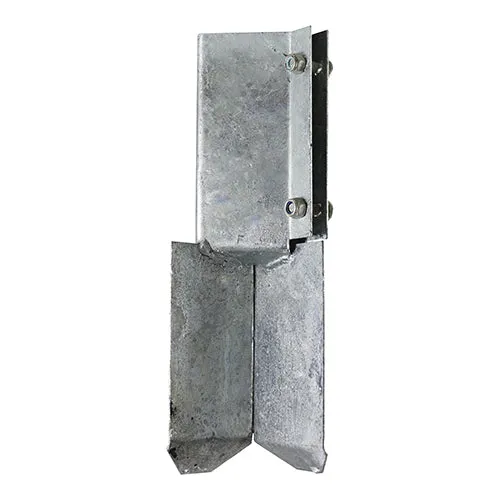

Concrete in fence post shoes are designed to be set into concrete when ground conditions won’t allow for a drive in spike or the post is to be fitted in a hard standing area. ?The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a late
| Carriage Bolt Size mm | M8 x 35 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Description | Concrete in fence post shoes are designed to be set into concrete when ground conditions won’t allow for a drive in spike or the post is to be fitted in a hard standing area. ?The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a late |
| Finish | Hot Dipped Galvanised |
| Included Items | M8 x 35mm Carriage Bolts (Qty 2) |
| Material | Carbon Steel |
| No. of Carriage Bolts | 2 |
| No. of Nuts | 2 |
| Nut Size mm | M8 |
| Nut Type | Nylon - Type T |
| Pack Dimensions L x W x H mm | 350 x 100 x 100 |
| Pack Weight kg | 1.330 |
| Post Holder Length mm | 150 |
| Product Code | CSB75G |
| Spike Length inch | 8 |
| Spike Length mm | 200 |
| To Suit Post Size inch | 3 x 3 |
| To Suit Post Size mm | 75 x 75 |
| Total Length mm | 350 |
